gabion basket
Gabions are baskets manufactured from 8x10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.From:Hebei China
Tel: 0086-311-68000399
Mobile:0086-311-68000399

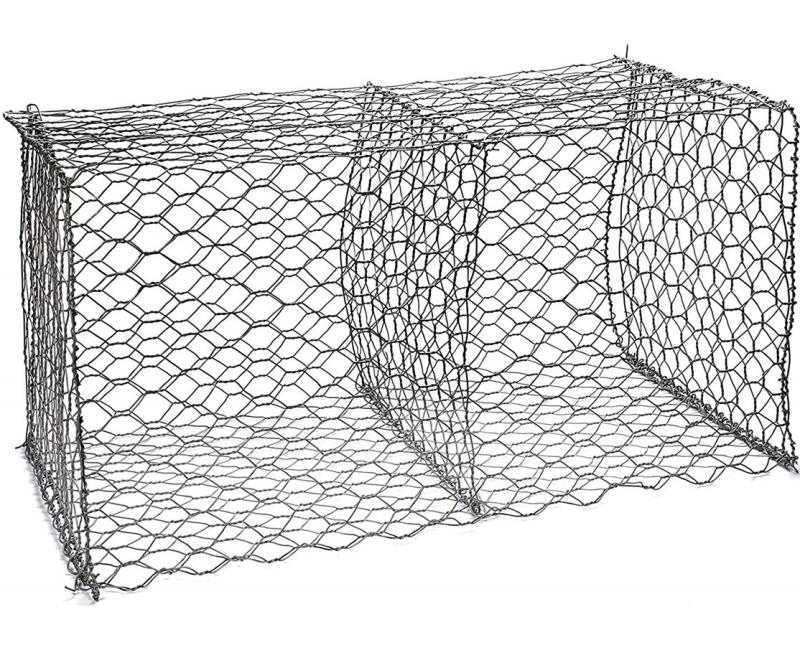

Galvanized Wire Gabion box is a kind of hexagonal wire baskets for holding stones. Wire diameter is chosen according to different types of hexagonal net. For steel wire, wire diameter from 2.0mm To 4.0mm can be adopted, and for PVC coated gabions, wire diameter from 3.0 To 4.5mm, will be used as material. And the lacing wire is generally heavier than facet wire.
Product Description
1. Material: Hot dipped galvanized wire, PVC coated galvanized wire, Galfan wire
2. Gabion facet mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm
3. Gabion selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion lacing wire: 2.2mm, 5% of gabion
6. Material wire zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion material wire is referring to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
9. Connecting way: by Helical wire, by U post, H post
Application:
1) River banks & dikes for controling and guiding water / flood
2) Strengthening and sustaining structure of soil
3) Protecting engineering of seaside area
Specifications
Stone Cage Wire Mesh Netting
Cage Panel connecting by c-nail or spiral spring wire
Twin wire panel with 5/3/5mm,5/4/5mm,6/5/6m
Welded Wire Stone Fence is used for yard decortation wall or garden wall,is welded by quality iron wire,zinc-coating could be upto 300g.
This kind of stone cage mesh is foldable and easy to transport and install.
Usually the welded stone box'finish is hot-dipped galvanizing or galfan,our galfan stone cage net with zinc-coating by 270g.Our welded stone net is well connected by c-nailor spiral wire ring..
Popular size:
Mesh opening:50X50mm,75X75mm,70X70mm
Diameter:4.0mm,4.5mm,5.0mm
Stone cage size :100X30X50cm,100X50X50cm
welded Stone net size 100X250cm,200X250cm,with mesh opening of 25X200mm,50X200mm,diameter of 5/4/5mm,6/8/6mm
The larger welded gabion box could be used as hesco barrier,
Material: Galvanized welded mesh, spring with other fittings, can be filled with sand, earth, cement, stone. Can be used in separate cell or some cells joint together.
Wire diameter: 3mm-5mm
Mesh opening size: 50mm-75mm
Panel size: The hesco Barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 4'6" x 3'6" x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m)., it also can be customized according to customer's requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, electro galvanized
Packing: wrapped with shrink film or packed in pallet.
PRODUCT INTRODUCE
The hesco barrier or hesco bastion is a modern gabion for military fortification. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary blast or small-arms barrier. One of the less heralded life and labor-saving devices of war. originally designed for use on beaches and marshes for erosion and flood control.the "Hesco Bastion" as it is officially known, quickly became a popular security device .
|
 |
|
|
